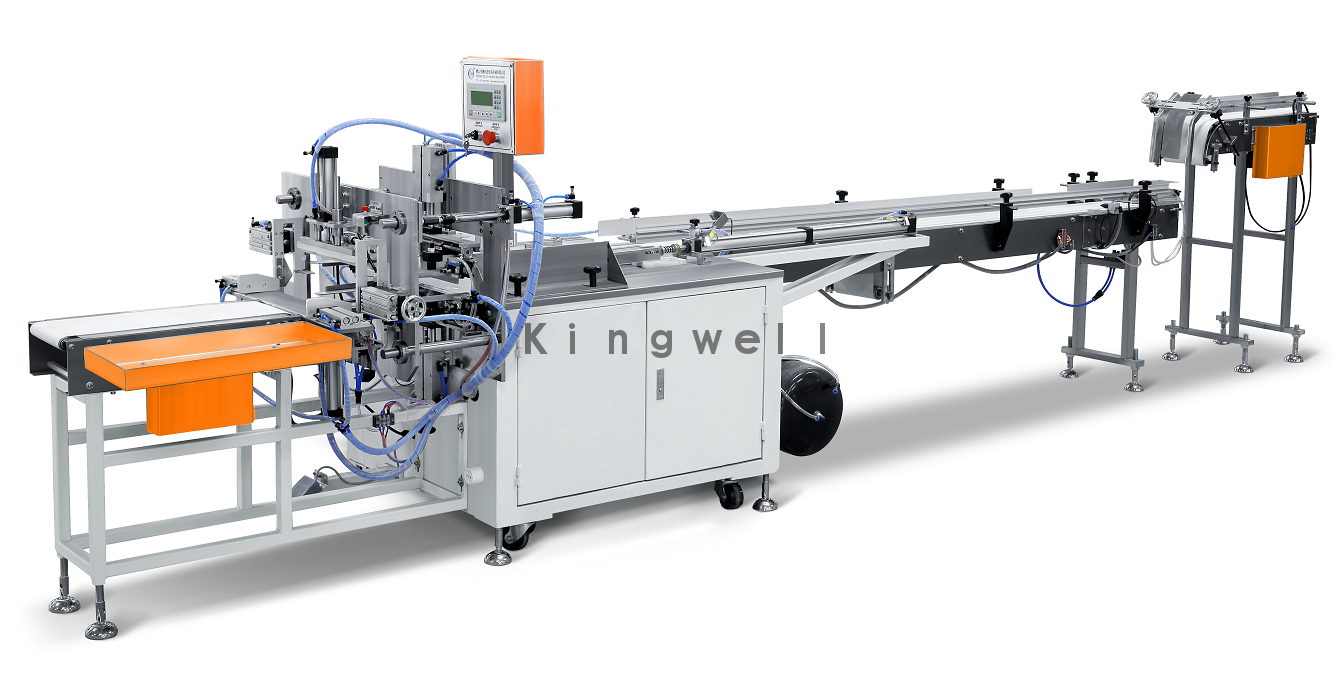

D610K single head facial tissue bundling pack machine
Pack style:
Can pack single lane or double lanes facial tissue.
Single lane: 3,4,5 single facial tissues/ bundle bag
Double lanes: 6,8,10 single facial tissues/bundle bag
Application:
Applicable for packing facial tissue bundle bag.
Features & Characteristics
1. Multi function: automatic conveying, single head operation, auto feeding, auto sealing.
2. Adopting the advanced PLC computer programming control, double frequency conversions control and the liquid crystal text to display parameters, it is very easy to set the machine. Moreover, the temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficiently.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with facial tissue packing machine with conveyer. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
4. Capacity: 7-10 pack/min.(according to 3 bags per pack)
Principal capability and technical feature:
Machine model | D610K |
Capacity | 7-10 pack/min |
Power source | 220 V，50 HZ |
Air supply | 0.6 MPA |
Power consumption | 1.5KW |
Packing size | Single lane: L(450)mm*W(210)mm*H(140)mm Double lane: L(450)mm*W(420)mm*H(140)mm |
Packing film material | PE |
Minimum film thickness | 6 dmm |
Machine size（L*W*H） | L4800*W2000*H1350mm(conveyor length:3000mm) |
Machine net weight | 1000kg |
