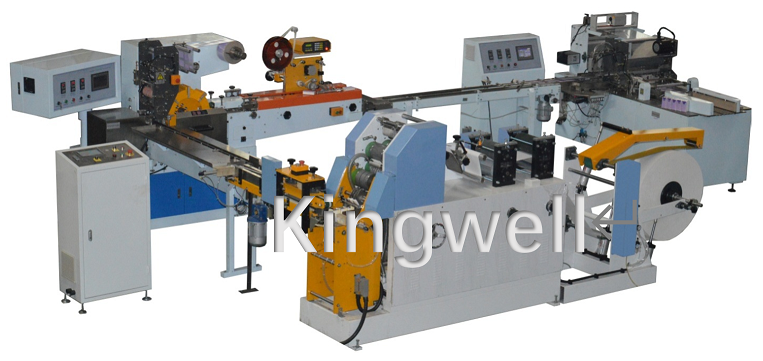

Pocket tissue Production Line

Pocket tissue folding machine

Final unfolding size:   208x208 mm ＋2mm

Raw paper width：   180-210 mm

Capacity：   750-800 sheets/min

Maximum diameter：1200 mm

Inner diameter of raw paper roll: 3 inch（76.2  mm）

Machine Frame style: Welding

Transmission mode：gear, chain, blet

Unwinder: single, belt driving

Raw paper feeding: Air cylinder assistant feeding

Folding style: N folding

Control method: Adjusting speed by frequency transformer

Embossing: steel to rubber

Main machine power:1.5KW

Fan power:5.5 KW

Pocket tissue single pack machine

1. feeding: automatically

2. capacity:70-90 packs / min.

3. time of changing to different size of handkerchief: 40 min.

4. time of changing to packing film: 15 min.

5. The machine can pack two sizes of handkerchief: standard and mini type.

6. Machine size: L3800xW2300xH1950mm

7. Machine weight: 1500kg

8. Packing film material: CPP

9. Film thickness: 0.035～0.05mm

10. Maximum diameter of film roller:420mm

11. Maximum width of film:150mm

12. Air supply: 0.5-0.6 Mpa

13. Power: 380V, 50HZ

14. Main machine:3.5kw, heating:3 kw

Pocket tissue bundling pack machine

1. feeding: automatically

2. capacity:16-18 bundling bag / min.

3. time of changing to different size of handkerchief:30 min.

4. time of changing to packing film: 15 min.

5. The machine can pack two sizes of handkerchief: standard and mini type.Bundling quatity:5x2 bags, 6x2 bags

6. Machine size: L4400xW2200xH1500mm

7. Machine weight: 1600kg

8. Packing film material: CPP

9. Film thickness: 0.035～0.05mm

10. Maximum diameter of film roller:420mm

11. Maximum width of film:150mm

12. Air supply: 0.5-0.6 Mpa

13. Electricity power: 380V, 50HZ

14. Main machine:4 kw, heating:3.6 kw

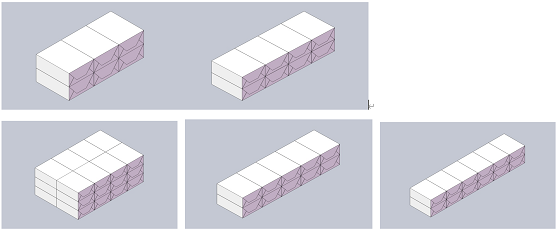

Packing style:

Packing style:
