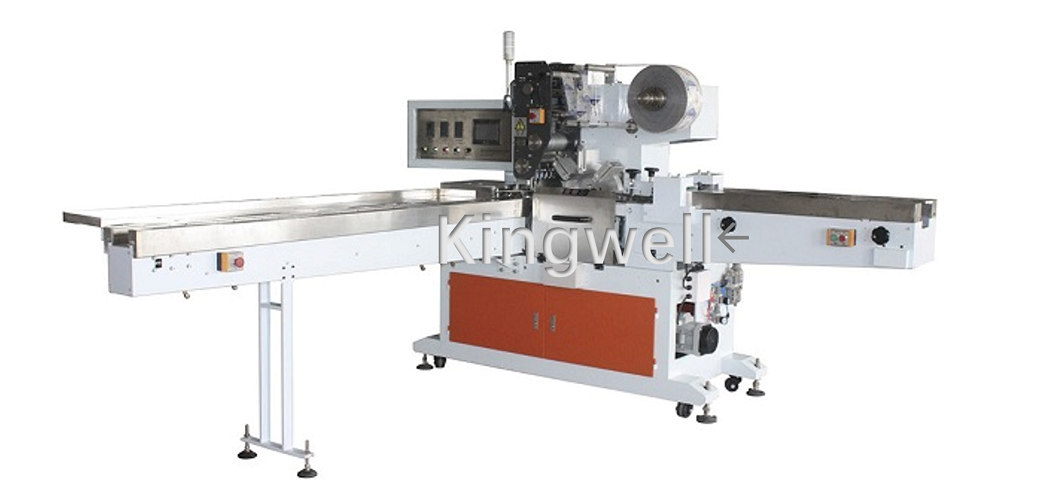

N110 pocket tissue automatic Single pack machine
Application:
Applicable for packing single normal and mini pocket tissue.
Features & Characteristics
1. Adopt packing way by wrapping, hemming and sealing with compact structure suitable for packing normal and mini pocket tissue.
2. Adopt the system of stepless frequency conversion controlling, touching screen and PLC, clearer human-machine interface, easier for maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving much laboring cost.
4. It saves much packing material by the function of photocell checking, servo tracking, non-material feeding without tissue.
5. High automation, high specialization, high efficiency and less trouble.
Principal capability and technical feature:
Model | N110 | |
Bagging size(mm)
| Length Width Height | Normal: 105X55X22~26 mm Mini: 70X55X22~26 mm (Could be customize according your request) |
Packing speed | 35-110 bags/min. | |
Total power | 5.27KW | |
Overall weight | 1650kgs | |
Outer dimension (LxWxH) | 3165x3065x2100 (mm) | |
Air pressure | 0.6 MPa | |
Noise | ≤78dB | |
Suitable packing material | CPP | |
Power supply type | 380V/50Hz | |

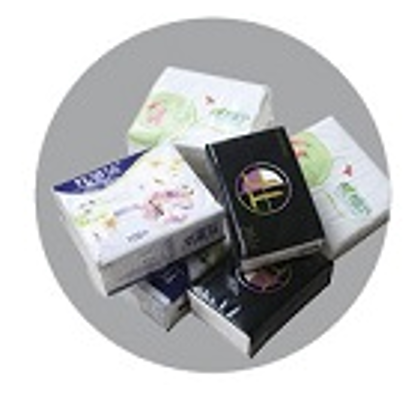

Packing sample:
