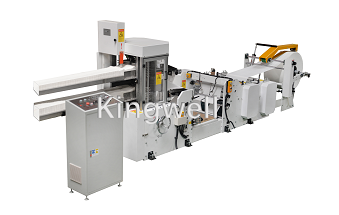

D700 series napkin folding machine
Application:
Applicable for embossing, printing and folding napkin.
Features & Characteristics
1. Multi function: embossing, color printing, folding, cutting.
2. Professional print roller ensures excellent printing effect.
3. Tissue paper are diverted to calendaring rollers and printing rollers and leads to embosser roller, tension could be adjust during this process.
4. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes our machine have long life.
5. Optional:
1)Automatic paper edge correcting system.
2)Automatic counting system.
3)Tissue heating system.
4)Embossing heating system.
5)Steel to steel or carving type embossing.
6)Ceramic anilox printing roller
Technical feature:
Machine Model | D700 series |
napkin size(after folding) | 160X160-430X430mm |
Capacity | 120-180 m/min (no printing) 70-120 m/min ( printing) |
Embossing mode | steel to rubber/ Steel to felt |
Folding mode | 1/4 folding(Other folding model to be selected) |
Printing mode | Adagio printing, steel anilox printing roller |
Raw paper | 1-3 ply, 18-25 GSM |
Power adjustment | Variable frequency speed regulating |
Procedure control | PLC(if need) |
Band saw size | Thickness:0.6 mm Width: 32 mm Girth: 3200 mm |
Optional device | Automatic paper edge correcting system. Automatic counting system. Tissue heating system. Embossing heating system. Steel to steel or carving type embossing. Ceramic anilox printing roller |
Width of jumbo | According to napkin size and machine model |
Max diameter of jumbo roll | Ø1100mm |
Inner diameter of jumbo core | Ø76.2mm |
Power source | 380V，50 HZ |
Power consumption | 2-4 KW(may differ for different napkin) |
Product samples:
