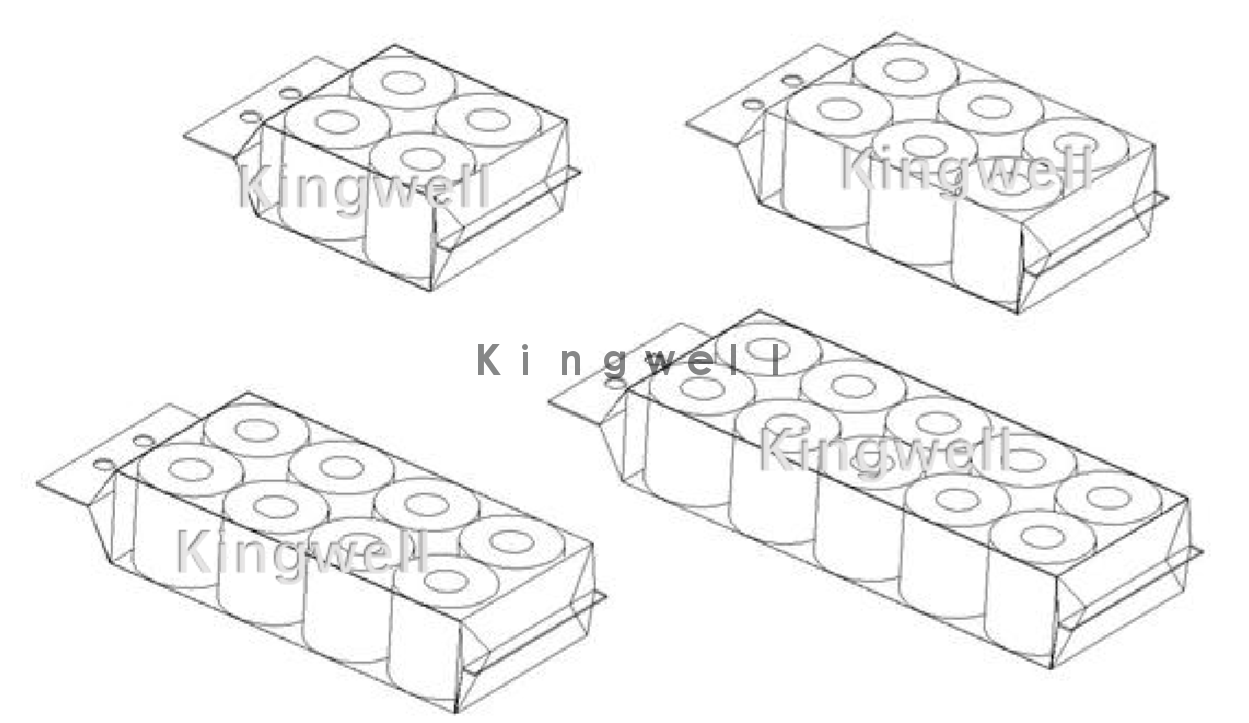

Packing style:
Features & Characteristics
1. Full automatic run. High speed. Suitable for packing bundling rolls(6,8,10 rolls in one bag).
2. Can be connected with log saw or single roll wrapping machine to form an full automatic production line.
3. Servo system,PLC controlled.
4. Auto feeding, auto adjustment.Adopting high quality sensors.
5. Operated by color touch screen display.
6. Emergency stop/ pause function, safety alarm system, air and electric power protection system.
7. Adopting constant temperature sealing and cutting system.
8. Automatic conveying, automatic feeding, automatic sealing, automatic countering.
9. Adopting the advanced computer programming control, servo motors controlled and employing the liquid crystal text to display parameters, it is with simple set. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermal stability can be protected more efficient.
10. Easy to maintain, low noise.
11. Electric eyes detecting, stop automatically when failure occur.
12. Comprehensive design, rigid frame, famous brand major components, this allows our machine work steadily & efficiently, and therefore this makes machine have long life.
13. Touch screen controlling, parameter adjusted in touch screen easily.
14. The machine is equipped with vacuum system which can take away the waste sealing film automatically.
Application:
Applicable for packing bundling toilet rolls (4,6,8,10 rolls/bag).
Principal capability and technical feature:
Model | D260 |
Design capacity | 32 bag/min |
Operating capacity | 20-23bag/min |
Power supply | 380V 50HZ |
Air supply | 0.6MPA(Supplied by user) |
Power | 21KW |
Feeding mode | Full automatic 2 lanes feeding system |
Suitable for packing | Bundling toilet rolls |
Single roll size | Ø 90-120mm，Length:90-120mm |
Bag size/Rolls per bag | L(270-600)*W(180-240)*H(90-120) mm 6、8、10 rolls/bundling bag |
Bundling bag mode | Prefabricated bag with air-bleed hole, max bag length: 800mm |
Bundling bag material | PE, thickness:：≥0.05mm |
Bundling bag store | Two bag storage |
Bundling bag storing quantity | ≤500 pcs |
Machine weight | 3000kg |
Machine size | L5300*W1800*H1850 mm
|

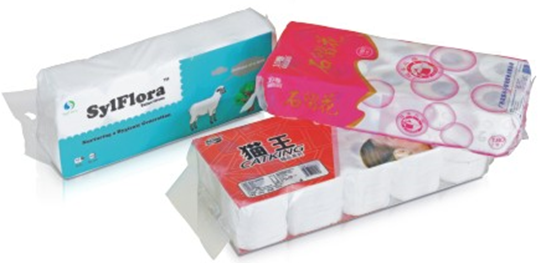

Packing picture:
