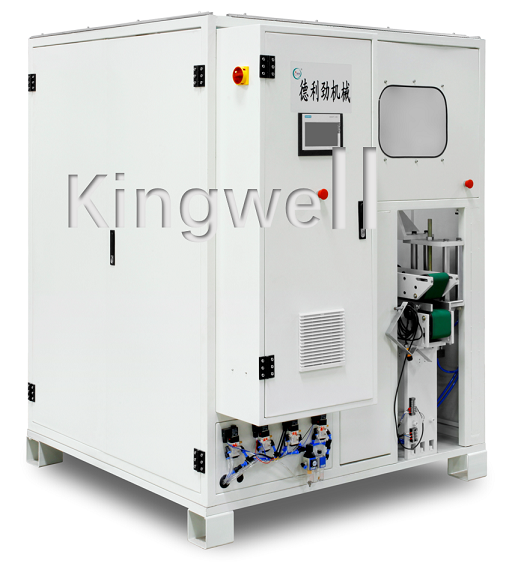

D160-I Single lane log saw for facial tissue
Application:
Applicable for cutting facial tissue log.
Features & Characteristics
1. PLC controlled, touch screen operating, servo motors controlled. Adopting the advanced PLC computer programming control & touching screen, This allows operating the machine very easily.
2. Logs feeding are driven by servo motors to make sure cutting exactly length roll and the cutting surface is smooth.
3. Servo motors controlling allows the products locate more accurately and better tidy of the cut.
4. Automatic disk blade sharpen system. The blade is sharpened automatically according to the wear degree. Disk blade is sharpened by pneumatic device. The time of grinding are controlled by touch screen. The grinder can be adjusted automatically according to the wear extent.
Principal capability and technical feature:
Model | D160-I | |
Capacity | Max speed | 160cuts/min |
Operation speed | About 140 facial tissues/min, 150 cuts/min | |
Suitable for cutting paper | Facial tissue log | |
Log size | Length | 1680-4200mm |
Width | 60-150mm | |
Height | 30-120mm | |
Cutting length | 90-250mm, servo motor control, Length tolerance:±0.8mm | |
Power Supply | AC380V 50HZ | |
Air Supply | 0.6 MPA | |
Power | 11.2 KW | |
Blade sharpen system | Pneumatic sharpening, all sharpening data are operated in liquid crystal display. | |
Cooling system | The sharpen device is cooled by compressed air all time. | |
Blade size | Outer Ø 610mm Inner Ø 68.3mm Thickness 4.76mm | |
Maine machine sizes | L1700*W1420*H2200mm+3m feeding conveyor | |
Feeding conveyor length | L3000mm | |
Machine net weight | 2300 kg | |
