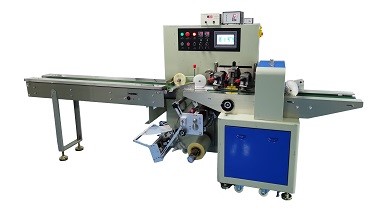

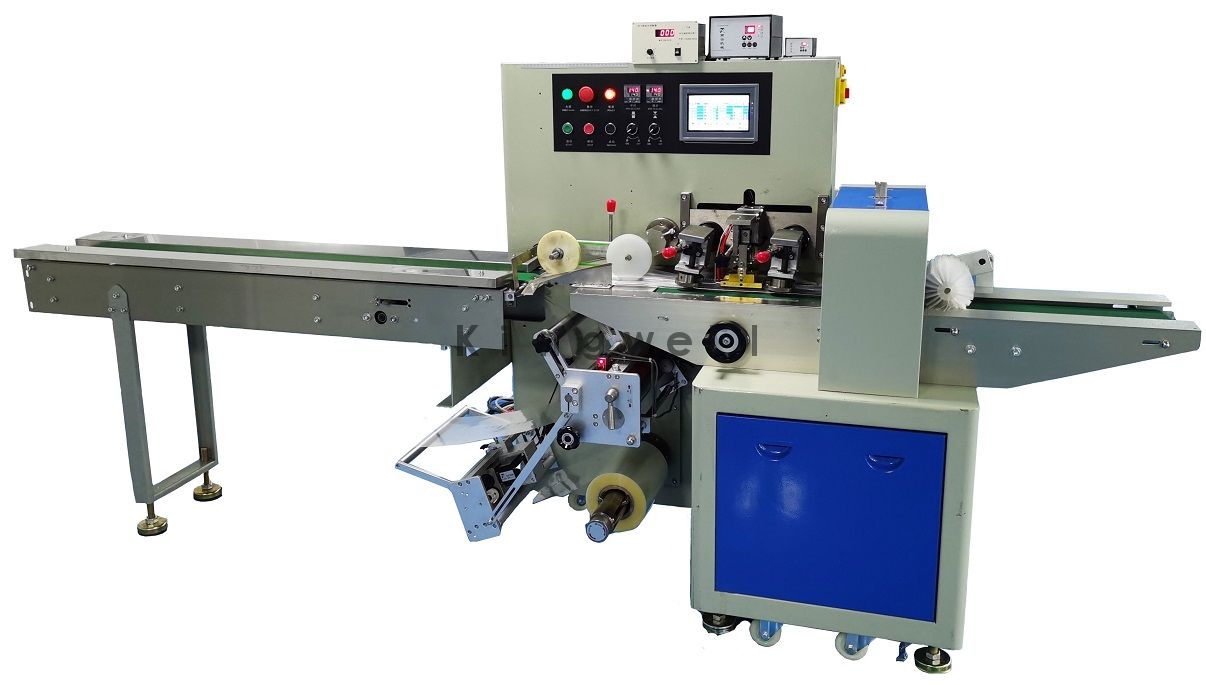

Mask single pack machine
Features & Characteristics:
This machine is designed for producing one-time-use planar masks, which can improve the overall production efficiency, reduce production costs and improve product quality. The main functions of the equipment: mask folding, placement of metal nose clip, ultrasonic rolling, masks cutting off, ear loop welding, ear loop blinding, masks stacking.
Suitable for pack: Medical flat masks and N95 masks.
When pack single pcs of mask, it can connect with mask machine to form an automatic production line. Also the machine can pack 2-10 pcs of flat masks and N95 masks, but need to feed the masks to the machine by manual.
Model | D350 |
Film width: | Max.350mm，thickness:0.02-0.07mm |
Bag making length | 100~1000mm |
Bag making width | 80～150mm |
Product height | Max.50mm |
Roll diameter | Max.350mm |
Packing speed | 40～100包/分 |
Power | 220V,50/60HZ,2.8Kw |
Machine size | (L)3255×(W）715×(H)1312mm |
Machine weight | 700Kg |
Machine name / model | D350 |
Packing material properties | Flat masks |
Rack properties | Carbon steel milky white paint |
Cutter seal property | Single knife, standard 2-stripe seal, Tooth cut, |
Middle sealing property | Standard mesh pattern, sealing surface width of 10 mm |
Tailstock attribute | Belt feeding, tailstock length 700mm, belt width 80mm, deck width 120mm, belt base width 120mm |
Display | Display and control touch screen |
Control system | Three servo control system, servo motor, Yatai temperature control meter, end sealed sponge exhaust device |
