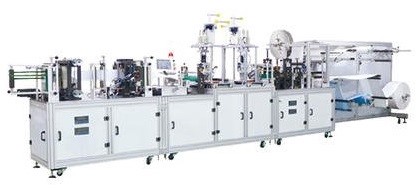

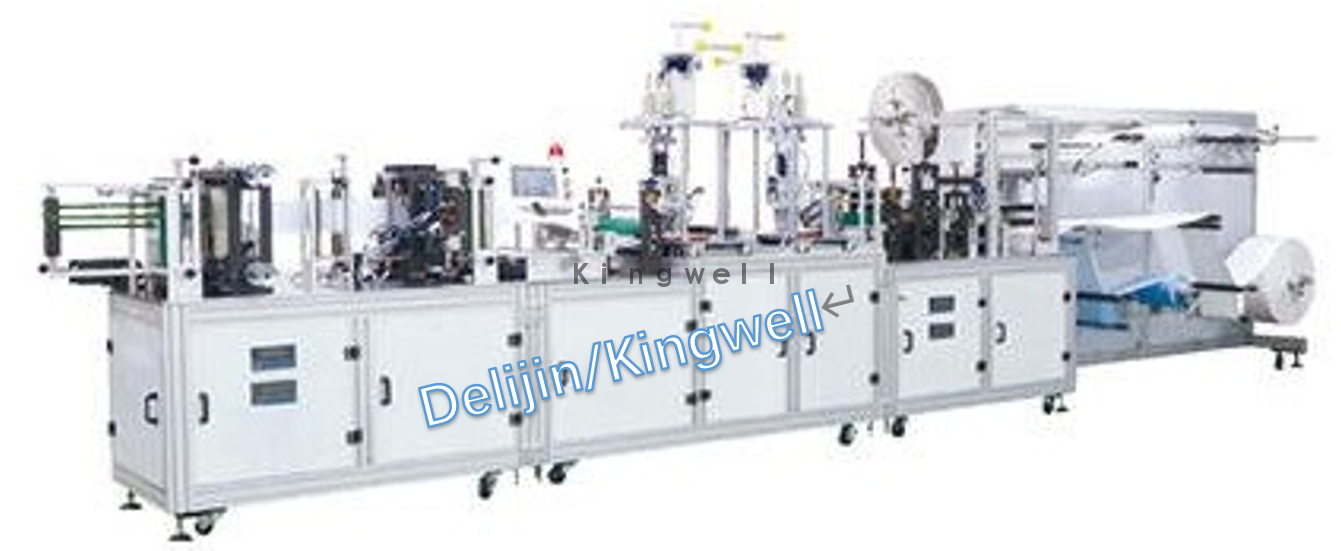

N95 mask machine
Features & Characteristics:
1. Main parts:
1) Mask plate making machine
2) Ear welding machine
2. This machine is designed for producing N95 masks, which can improve the overall production efficiency, reduce production costs and improve product quality. It contains mask plate making part and ear welding part.
3. Making products automatically:
Automatic feeding none woven and melt brown fabrics, automatic feeding and cutting nose clip, automatic folding mask, automatic welding mask plate, automatic cutting mask, automatic discharge the waste cloths, automatic welding ear rope, automatic countering production quantity.
4. Production Process
Non-woven and melt brown fabrics material feeding → Nose clip feeding and cutting → Mask plate ultrasonic welding→ Mask plate forming →Plate folding→Ultrasonic “L” shape edge welding→ Plate cutting →None woven and melt brown fabrics wastes discharging → Mask plate discharging, Mask plate feeding → Ear rope feeding → ear rope ultrasonic welding→Finished product discharging.
Principal capability and technical feature:
Model | DKZ-N95 |
Capacity | 40~60 pcs/min. |
Total power | 20 KW |
Power source | AC380 V，50/60 HZ |
Air pressure | 0. 6MPA |
Raw material | 1）Non-woven fabrics (inner and outer ply) 2）melt blown fabrics(medium ply) 3）nose clip 4) ear loop |
Width of non-woven fabrics | 200 mm |
Noise | ≤ 78 dB |
Machine weight | 1500kg |
Machine size | Mask plate machine: L7157 x W1188 x H1985 mm Ear welding machine: L2326 x W1100 x H1410mm |
