D652 toilet roll bundling machine
Packing style:
Application:
Applicable for packing bundling toilet rolls.
Features & Characteristics
1. Multi function: automatic conveying, single head operation, auto feeding, auto sealing.
2. Adopting the advanced PLC computer programming control, double frequency conversions control and the liquid crystal text to display parameters, it is very easy to set the machine. Moreover, the temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficiently.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with automatic toilet roll packing machine with conveyer. This allows the machine having high capacity and therefore to save the labor and reduce production cost.
Principal capability and technical feature:
Model | D651/D652 |
Air supply | 0.6Mpa |
Power source | 220V 50HZ |
Capacity | 5-8pack/min |
Available diameter | Diameter for single roll:￠65-100mm (Can customize according to your request) |
Available height | Height of single roll:100-150mm (Can customize according to your request) |
Power consumption | 1.2 KW |
Machine size | L3900×W1500×H1500mm |

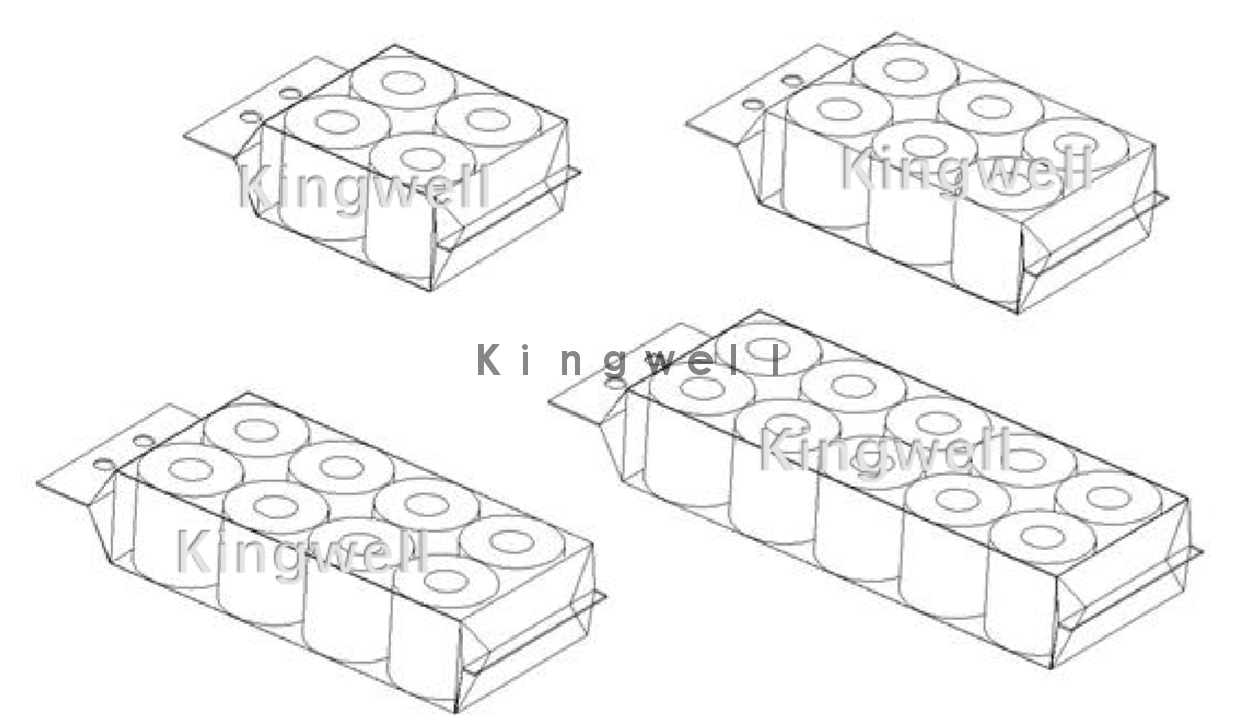

Packing sample:
