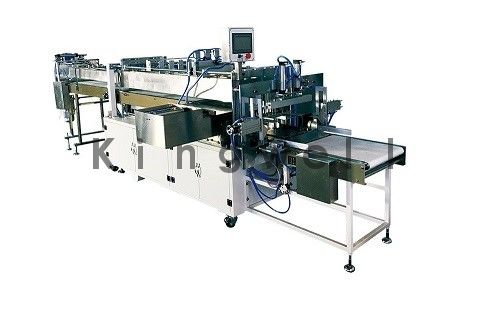

48 rolls bundling pack machine
Packing style:
Application:
This machine is customized for packing toilet rolls of 4 lanes,2 layers,24,32,40,48 rolls/bag.
Features & Characteristics
1. Multi function: single head operation, automatic feeding, automatic sealing, automatic countering.
2. Adopting the advanced PLC computer programming control, touch screen and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.
3. Packing and sealing are pretty and tidy.
Principal capability and technical feature:
Model | D623 |
Capacity | 4-6 bags/min for packing 48 rolls in one bag(customized machine maybe different, not detected) |
Power source | 220 V，50 HZ |
Air pressure | 0. 6MPA |
Power | 2.2 KW |
Packing diameter | 90-105 mm |
Packing height | 210mm |
Main machine size | L4600×W1500×H1600mm |
Noise | ≤ 50dB |
Available for | Packing 8,12,16,24 toilet rolls in one bag(Need to be specified) |
Film material | PE |
Thickness of packing film | Suggest 80 µm or more(Min 60µm) |

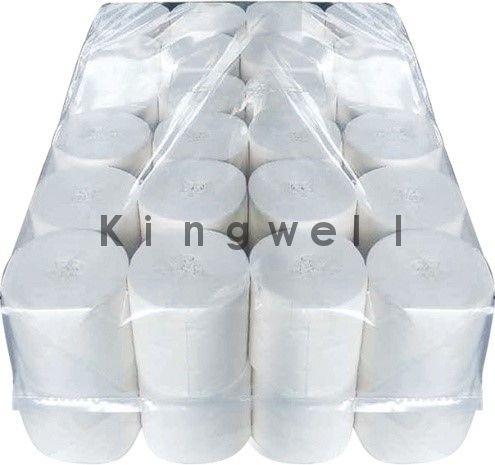

Packing picture:
